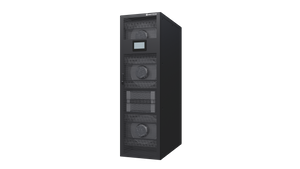

CT-Dual Module Room-Level Variable Frequency Air-Cooled Precision Air Conditioner-Indoor Unit

CT-Dual Module Room-level air-cooled computer room air conditioner

CT-room-level air-cooled computer room air conditioner is the most widely applicable product in the Cyber Master series. It has high-efficiency cooling capacity, ±15% wide power supply format, multiple intelligent monitoring protection, and modular fast installation concept, achieving 100% full front maintenance. It is a constant temperature and humidity precision air conditioning product designed specifically for various types of IDC computer rooms, communication rooms, equipment rooms and other application places, and can fully meet the heat dissipation needs of medium and low heat density data rooms.

Quantity:
Availability:





Inquire Add to Basket

Features And Advantages

FAQ

The compressor of a well-known brand is adopted, which has the advantages of high efficiency, stable operation, low noise, long life and reliable operation at low speed during the compression process.
the whole machine structure adopts the "digital punching + professional mold opening" manufacturing process of Haiwu Factory, and the plate is integrated into one, with good structural strength and strong weather resistance.
The heat exchangers are all made of high-efficiency internally threaded copper tubes and blue hydrophilic aluminum film low-pressure loss fins, which can make the refrigerant heat exchange contact area larger, heat exchange more fully, increase efficiency by 20%, and be more energy-saving and durable.

CMA Room-Level Variable Frequency Air-Cooled Precision Air Conditioner - Indoor Unit	CMA3030	CMA3040	CMA3050	CMA4060	CMA4080	CMA4100
Air Delivery Method	Top/Bottom	Top/Bottom	Top/Bottom	Top/Bottom	Top/Bottom	Top/Bottom
Main Power Supply	380V 3Ph-50Hz	380V 3Ph-50Hz	380V 3Ph-50Hz	380V 3Ph-50Hz	380V 3Ph-50Hz	380V 3Ph-50Hz
Cooling Capacity (kW)	30.1	40.1	50.1	60.2	80.2	100.2
Sensible Cooling Capacity (kW)	27.09	36.09	45.09	54.18	72.18	90.18
Maximum Unit Operating Current FLA (A)	46.5	55.5	55.5	86.1	106.4	106.4
Number of Compressors	1	1	1	2	2	2
Fan Type	EC Centrifugal Fan	EC Centrifugal Fan	EC Centrifugal Fan	EC Centrifugal Fan	EC Centrifugal Fan	EC Centrifugal Fan
Number of Fans	1	1	1	2	2	2
Circulation Air Volume (m³/h)	9200	11500	13500	18400	23000	27000
Heating Capacity (kW)	6	9	9	9	15	15
Humidification Capacity (kg/h)	5	6	6	10	10	10
Liquid Pipe (mm)	16	22	22	16	22	22
Gas Pipe (mm)	22	28	28	22	28	28
Humidification Water Supply Pipe (Female Thread)	G 1/2"	G 1/2"	G 1/2"	G 1/2"	G 1/2"	G 1/2"
Unit Drain Pipe	Inner Diameter 19mm, Outer Diameter 25mm, Metal Hose Clamp Connection	Inner Diameter 19mm, Outer Diameter 25mm, Metal Hose Clamp Connection	Inner Diameter 19mm, Outer Diameter 25mm, Metal Hose Clamp Connection	Inner Diameter 19mm, Outer Diameter 25mm, Metal Hose Clamp Connection	Inner Diameter 19mm, Outer Diameter 25mm, Metal Hose Clamp Connection	Inner Diameter 19mm, Outer Diameter 25mm, Metal Hose Clamp Connection
Unit Width (mm)	780	1130	1130	1530	2230	2230
Unit Depth (mm)	996	996	996	996	996	996
Unit Height (mm)	1975	1975	1975	1975	1975	1975
Weight (kg)	285	460	460	690	880	880
Flat Outdoor Unit Model	CMT050SP	CMT066SP	CMT088SP	CMT050SP*2	CMT066SP*2	CMT088SP*2
Centralized Outdoor Unit Model	CMT050SF	CMT066SF	CMT088SF	CMT099SH	CMT132SH	CMT176SH
Recommended Circuit Breaker (A)	63	63	63	100	125	125
Indoor Unit Power Cord Diameter (mm²)	4X10.0+1X10.0	4X16.0+1X16.0	4X16.0+1X16.0	4X25.0+1X16.0	4X35.0+1X16.0	4X35.0+1X16.0

FAQs

How does a data center achieve precise temperature and humidity control?

Through advanced sensing technology and control systems, temperature accuracy of ±0.5°C and humidity control of ±3% RH can be achieved, ensuring optimal operating conditions for data center equipment.
What energy efficiency and saving measures are included?

Utilizes high-efficiency components such as variable frequency compressors and EC fans, combined with intelligent control systems that automatically adjust output based on actual load, effectively reducing energy consumption.
How does it adapt to different environmental conditions?

The design considers the year-round cooling needs of data centers, even during winter. Equipment, pipelines, and valves are equipped with effective measures to prevent freezing or cold air from directly entering the main server room, which could lead to condensation and negatively impact electronic information equipment.
What are the maintenance and operational costs?

The design is simple and easy to maintain, while energy-saving technologies reduce operational costs. For instance, centralized systems have higher maintenance costs, whereas decentralized systems require less than 1 million RMB in annual operating expenses.
